CAMDENBOSS  CNMB/12V/KIT  Non Metallic Enclosure, IP20, DIN Rail, Vented, Kit, DIN Rail, 58 mm, 210 mm, 90 mm

CAMDENBOSS CNMB/12V/KIT
Technical Data Sheet (2.21MB) EN See all Technical Docs

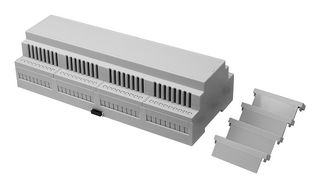

Image is for illustrative purposes only. Please refer to product description.

Product Overview

  • Snap-fit kit for easy assembly
  • Vented design
  • Box fits 35mm DIN rail or direct surface mount
  • Self customised perforated terminal cover as standard
  • Snap fit terminal cover for IP20 finger protection
  • Can carry up to 3 PCBs horizontally and 2/4 vertically
  • Front panel ideal for screen printing logos etc.
  • Moulded in grey UL94-V0 flame retardant PC
  • Enclosed base eliminates any need for additional insulation

Product Information

Enclosure Type:
DIN Rail
Enclosure Material:
PC (Polycarbonate)
Body Colour:
Grey
External Height - Metric:
58mm
External Width - Metric:
210mm
External Depth - Metric:
90mm
IP Rating:
IP20
NEMA Rating:
Not Rated
External Height - Imperial:
2.28"
External Width - Imperial:
8.27"
External Depth - Imperial:
3.54"
Product Range:
CNMB Series
No. of Switch Holes:
-
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Contents

Contents: Base, top panel, clips for rail or wall mounting, blanking plates & 2 perforated terminals

Legislation and Environmental

Country of Origin:
Great Britain

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85129010
Weight (kg):
.208
