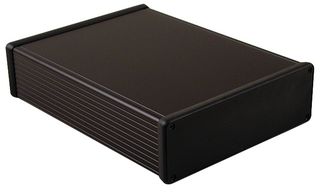

HAMMOND  1455T2202BK  Metallic Enclosure, 1455 Series, Extruded With Plastic End Panels, Instrument, 51.5 mm, 165 mm

HAMMOND 1455T2202BK
See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

Product Overview

  • Designed to house P.C. boards or for equipment interfacing
  • Sized for standard Eurocards
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
  • Easy to machine - one piece - front & back plastic end panels
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06" (1.5 mm)
  • Extruded aluminium body with a slide removable "belly" plate
  • Two easy to machine, black solid ABS plastic end panels with integral bezel
  • Extruded aluminum body
  • Self adhesive clear rubber feet
Recommended screw torque is 5 lbf/in

Product Information

Enclosure Type:
Instrument
IP Rating:
Not Rated
NEMA Rating:
Not Rated
External Height - Metric:
51.5mm
External Width - Metric:
165mm
External Depth - Metric:
220mm
Enclosure Material:
Aluminium
Body Colour:
Black
External Height - Imperial:
2.03"
External Width - Imperial:
6.5"
External Depth - Imperial:
8.66"
Product Range:
1455 Series
No. of Switch Holes:
-
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Notes

Recommended screw torque is 5 lbf/in

Legislation and Environmental

Country of Origin:
Canada

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
76169990
Weight (kg):
.55
