FH52-40S-0.5SH(99) -

FFC / FPC Board Connector, 0.5 mm, 40 Contacts, Receptacle, FH52 Series, Surface Mount, Bottom

FH52-40S-0.5SH(99) - FFC / FPC Board Connector, 0.5 mm, 40 Contacts, Receptacle, FH52 Series, Surface Mount, Bottom

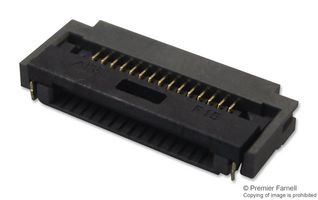

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
FH52-40S-0.5SH(99)
Order Code:
2427833
Product Range
FH52 Series
Technical Datasheet:
(EN)
See all Technical Docs

Product Overview

The FH52 series FPC/FFC ZIF Connector with SMT horizontal mounting type termination. The FH52 series has larger metal fittings that extend out from the connector body and enable a visual inspection of its soldering conditions. The flip lock structure makes it easier to engage/disengage the actuator and reduces the required force needed to operate. A clear tactile click is delivered upon the successful completion of the mating process. The side catch technology combined with tabbed FPCs increase the horizontal retention force of the FPC. It accepts 0.3mm thick products that are easy to manufacture and have superb insertion performance. The bottom of this connector is enclosed by a fully moulded structure that protects the contacts and removes any restrictions from PCB patterning and design.
  • Highly reliable connection and robust structure
  • Available with extended metal fittings
  • Simplified operations
  • Increased retention force
  • Fully moulded structure aids PCB layout
  • Halogen-free
  • 0.5A Rated current
  • 50VAC Rated voltage

Applications

Industrial

Product Information

:
0.5mm
:
40Contacts
:
Receptacle
:
FH52 Series
:
Surface Mount
:
Bottom
:
1 Row
:
Gold Plated Contacts
:
Phosphor Bronze
:
0.3mm
