HIROSE(HRS)  HR10A-10J-12S(73)  Circular Connector, HR10 Series, Jack, 12 Contacts, Socket, Solder, Cable Mount

HIROSE(HRS) HR10A-10J-12S(73)
Technical Data Sheet (1.62MB) EN See all Technical Docs

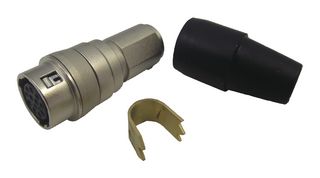

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The HR10A-10J-12S(73) is a 12-position female high performance miniature Circular Connector with polyamide resin and PBT resin insulator, silver plated copper alloy contacts. The HR10 series jack has straight connector orientation, soldering wire termination method and push-pull locking style. It is recommended for use with 26AWG wire. Although small in size, full featured with a well integrated design. Easy to operate, the single-action push-pull lock structure allows for quick and efficient locking and unlocking.
  • Simple, yet highly reliable design for compact, high density applications
  • Extremely easy mating/unmating operations
  • 7mm Cable outer diameter
  • 2A Rated current
  • 100VAC, 140VDC Rated voltage
  • 10mR Maximum contact resistance
  • 1000MR Minimum insulation resistance
  • 300VAC for one minute Withstanding voltage
  • 1000 Mating/unmating cycles

Product Information

Product Range:
HR10 Series
Circular Connector Shell Style:
Cable Mount Receptacle
No. of Contacts:
12Contacts
Circular Contact Type:
Solder Socket
Coupling Style:
-
Connector Body Material:
Brass Zinc Alloy Body
Connector Body Plating:
-
Contact Material:
Beryllium Copper, Phosphor Bronze
Contact Plating:
Silver
Gender:
Jack
Contact Gender:
Socket
Insert Arrangement:
10-12
Connector Shell Size:
10
Contact Termination Type:
Solder
Connector Mounting:
Cable Mount
Connector Type:
Circular Industrial
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Country of Origin:
China

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85366990
Weight (kg):
.01515
