HIRSCHMANN TEST AND MEASUREMENT  BUELA 20 K  PLUG, 4MM, BUNCH PIN, ASST COLOURS, BSB

HIRSCHMANN TEST AND MEASUREMENT BUELA 20 K
Technical Data Sheet (78.22KB) EN See all Technical Docs

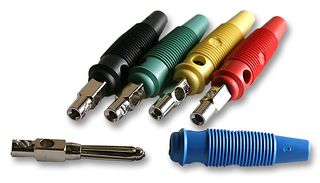

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The BUELA 20 K is a 4mm assorted Multiple-spring Wire Plug, 16A/30VAC/60VDC rated, nickel-plated brass pin contact, screw as termination type. The BUELA 20 K multiple-spring wire plug, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead. Screw connection up to maximum cable cross-section of 1.5mm².
  • Category I measurement according to IEC 61010 standard
  • -25 to +70°C Rated temperature range
  • PVC-P housing
  • 3mR Contact resistance

Product Information

Product Range:
BUELA 20 K Series
Gender:
Plug
Contact Termination Type:
Screw
Current Rating:
16A
Voltage Rating:
60V
Contact Plating:
Nickel Plated Contacts
Contact Material:
Brass
Connector Colour:
Assorted
Connector Mounting:
Cable Mount
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Test & Measurement

Legislation and Environmental

Country of Origin:
Austria

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85366990
Weight (kg):
.034
