LUMBERG  KV40  DIN Audio / Video Connector, 4 Contacts, Socket, Cable Mount, Silver Plated Contacts, Metal Body

LUMBERG KV40
Technical Data Sheet (125.25KB) EN See all Technical Docs

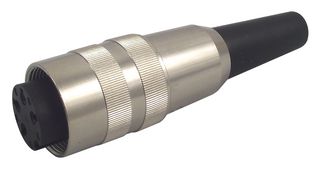

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The KV40 is a 4-pole DIN Audio/Video Connector, straight version with threaded joint, ground contact and solder terminals. Polyamide insulating body, gold-plated contacts with long TPE bend protection. The KV socket is suitable for use with SFV, SGR, SGV, SV and WSV plugs. Designed according to the IEC 61076-2-106 standards.
  • IP40 Protection rating
  • <5.0N Insertion force/contact
  • >1.2N Withdrawal force/contact
  • <=5mR Contact resistance

Product Information

No. of Contacts:
4Contacts
Gender:
Socket
Connector Mounting:
Cable Mount
Contact Plating:
Silver Plated Contacts
Connector Body Material:
Metal Body
Product Range:
-
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Applications

  • Industrial;
  • Audio;
  • Imaging, Video & Vision

Legislation and Environmental

Country of Origin:
Czech Republic

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85366990
Weight (kg):
.02354
