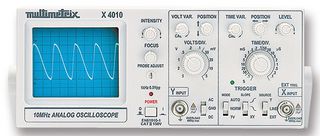

MULTIMETRIX  X4010  10MHz Single Input Channel Oscilloscope with a CRT display

MULTIMETRIX X4010
Technical Data Sheet (73.92KB) EN See all Technical Docs

Image is for illustrative purposes only. Please refer to product description.

Product Overview

  • 10MHz bandwidth
  • Triggering modes: Auto, Normal, TV
  • Max. acceptable voltage: CAT II 150V, 400V (DC+AC Peak) at 1kHz
  • Modulation Z
  • Probe calibration: Symmetrical square signal 0.5V ± 2% / 1kHz ± 2%
  • IEC 61010 safety: Class 1, CAT II, 150V

Product Information

Scope Channels:
1 Analogue
Bandwidth:
10MHz
Calculated Rise Time:
35ns
Scope Display Type:
CRT
Kit Contents:
-
Warranty:
-
Product Range:
-
Plug Type:
-
Oscilloscope Bandwidth:
10MHz
Supply Voltage Max:
230 VAC
External Width:
140 mm
Input Impedance:
1 Mohm
Scope Type:
Bench
No. of Channels:
1 Channels
Weight:
3 kg
External Height:
190 mm
SVHC:
To Be Advised
External Depth:
290 mm

Find similar products  grouped by common attribute

Applications

  • Maintenance & Repair;
  • Test & Measurement

Legislation and Environmental

Country of Origin:
France

Country in which last significant manufacturing process was carried out

Tariff No:
90302010
Weight (kg):
3
