VISHAY  TLVH42N2Q2  LED, Red, Through Hole, T-1 (3mm), 30 mA, 2.4 V, 625 nm

VISHAY TLVH42N2Q2
Technical Data Sheet (134.21KB) EN See all Technical Docs

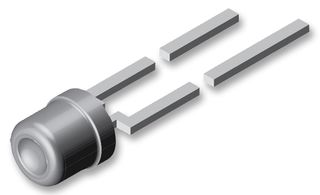

Image is for illustrative purposes only. Please refer to product description.

Product Overview

The TLVH42N2Q2 is a red Backlighting LED with 0.12lm luminous flux at test, 90° viewing angle and 625nm wavelength. Due to its special shape the spatial distribution of the radiation is qualified for backlighting. To optimize the brightness of backlighting a custom-built reflector (with scattering) is required. Uniform illumination can be enhanced by covering the front of the reflector with diffuser material.
  • High light output
  • Wide viewing angle
  • Low power dissipation
  • Low self heating
  • Rugged design
  • High reliability

Product Information

LED Colour:
Red
LED Mounting:
Through Hole
Bulb Size:
T-1 (3mm)
Forward Current If:
30mA
Forward Voltage:
2.4V
Wavelength Typ:
625nm
Luminous Intensity:
700mcd
Viewing Angle:
90°
Lens Shape:
Round
Packaging:
Each
Product Range:
TLVH Series
Automotive Qualification Standard:
-
MSL:
-
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • LED Lighting;
  • Consumer Electronics;
  • Computers & Computer Peripherals;
  • Test & Measurement

Legislation and Environmental

Moisture Sensitivity Level:
-
Country of Origin:
Philippines

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85414010
Weight (kg):
.000454
