L000926-10

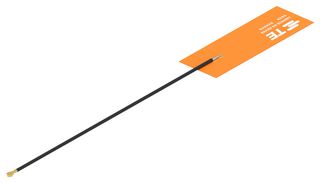

INTERNAL ANT, FPC, 450-470MHZ, -3.18DBI
Image is for illustrative purposes only. Please refer to product description.
Available to Order
register your interest here
| Quantity | Price |
|---|---|
| 1+ | HK$29.770 |
| 10+ | HK$22.120 |
| 25+ | HK$20.550 |
| 50+ | HK$19.400 |
| 100+ | HK$18.030 |
| 500+ | HK$16.250 |
Price for:Each
Minimum: 1
Multiple: 1
HK$29.77
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoL000926-10
Order Code4833985
Technical Datasheet
Antenna BandSingle Band
Antenna TypeFPC
Frequency Range410MHz to 430MHz, 430MHz to 435MHz, 450MHz to 470MHz
VSWR1.7:1, 1.8:1, 2.3:1
Peak Gain / Gain2.75dBi, -3.07dBi, -3.18dBi
Antenna MountingAdhesive / MHF4L Connector
Product Range-
ProtocolLoRaWAN
Operating Temperature Min-40°C
Operating Temperature Max85°C
Antenna PolarisationLinear
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Antenna Band
Single Band
Frequency Range
410MHz to 430MHz, 430MHz to 435MHz, 450MHz to 470MHz
Peak Gain / Gain
2.75dBi, -3.07dBi, -3.18dBi
Product Range
-
Operating Temperature Min
-40°C
Antenna Polarisation
Linear
Antenna Type
FPC
VSWR
1.7:1, 1.8:1, 2.3:1
Antenna Mounting
Adhesive / MHF4L Connector
Protocol
LoRaWAN
Operating Temperature Max
85°C
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85177100
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
