element14 offers a wide variety of reed proximity sensors from leading manufacturers like STANDEX, Littelfuse, and Festo, with mounting options such as surface mount, through-hole, flange, and panel mount. These sensors are available with a wide sensing range from 3 mm to 140 mm and operating temperatures from -40°C to 150°C.

Reed proximity sensors consist of two ferromagnetic blades (reeds) housed in a hermetically sealed glass envelope but not in contact. When a magnet is brought near the reed switch, the two reeds adopt opposite magnetic polarities and are drawn together, closing the switch. When the magnetic field weakens or disappears, the reeds separate due to an elastic spring effect, reopening the switch.

Reed proximity sensors are widely used in various domestic and industrial/building automation applications. They can detect the drum position in washing machines, monitor the end position or movement of hydraulic/pneumatic cylinders, and sense the opening and closing of doors, gates, or windows. To learn more about proximity sensors for industrial applications, please read our comprehensive guide for proximity sensors.

			Price For		Quantity

59150-030	1334105 Data Sheet RoHS	LITTELFUSE PROXIMITY SENSOR	Each	1+ HK$51.350 10+ HK$39.930 25+ HK$39.600 50+ HK$37.470 100+ HK$35.340 More Pricing...	Total:HK$51.35 Min: 1 / Mult: 1	-	Reed Sensor	-	-	-	-	-	-	-	-	-	-
59145-010	1653414 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 20.32 mm Flange Mount 500 mA -40°C to 105°C 59145 Series	Each	1+ HK$29.140 10+ HK$22.810 25+ HK$22.600 50+ HK$21.370 100+ HK$20.140	Total:HK$29.14 Min: 1 / Mult: 1	20.32mm	Reed Sensor	20.32mm	-	Flange	-	500mA	-	-40°C	105°C	59145 Series	-
59135-030	1608134 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 29.21 mm Flange Mount 250 mA -40°C to 150°C 59135 Series	Each	1+ HK$76.560 10+ HK$59.290 25+ HK$59.040 50+ HK$55.920 100+ HK$52.790 More Pricing...	Total:HK$76.56 Min: 1 / Mult: 1	29.21mm	Reed Switch	29.21mm	-	Flange	-	250mA	-	-40°C	150°C	59135 Series	-
MK24-B-3	2832681 Data Sheet RoHS	STANDEXMEDER Reed Switch MK24 Series SMD SPST 3 W 30 V 0.3 A10 to 15 AT	Each (Supplied on Cut Tape) Cut Tape	1+ HK$44.560 10+ HK$37.210 25+ HK$34.460 50+ HK$32.600 100+ HK$30.740 More Pricing...	Total:HK$44.56 Min: 1 / Mult: 1	-	Reed Sensor	-	-	SMD	-	300mA	-	-40°C	130°C	MK24 Series	-
2TLA020051R5100	2629955 Data Sheet RoHS	ABB - JOKAB Safety Sensor Non Contact Eden Dynamic Adam 15mm 24V M12 IP69K DYNlink Plastic	Each	1+ HK$945.620	Total:HK$945.62 Min: 1 / Mult: 1	15mm	Reed Sensor	15mm	-	Cable	-	30mA	-	-40°C	70°C	Eden Dynamic Series	-
C/03	170841 Data Sheet RoHS	MULTICOMP PRO Reed Switch Panel Mount 9 mm SPDT 50 VA 250 Vdc 1.5 A	Each	1+ HK$233.150 10+ HK$216.850 25+ HK$209.410 75+ HK$206.050	Total:HK$233.15 Min: 1 / Mult: 1	9mm	Reed Switch	9mm	-	Panel Mount	-	1.5A	-	-	-	-	-
59045-010	2774137 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor Through Hole 500 mA -40°C to 105°C 59045 Series	Each	1+ HK$17.450 10+ HK$14.890 25+ HK$14.760	Total:HK$17.45 Min: 1 / Mult: 1	-	-	-	-	Through Hole	-	500mA	-	-40°C	105°C	59045 Series	-
59135-1-T-02-F	1703856 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor Flange Mount 500 mA -40°C to 150°C 59135 Series	Each	1+ HK$46.120 10+ HK$40.670 25+ HK$38.750 50+ HK$36.820 100+ HK$33.880 More Pricing...	Total:HK$46.12 Min: 1 / Mult: 1	-	Reed Switch	29.21mm	-	Flange	-	500mA	-	-40°C	150°C	59135 Series	-
150855	3437202 Data Sheet RoHS	FESTO SENSOR REED -40 TO 60DEG C CABLE	Each	1+ HK$572.420 10+ HK$517.740	Total:HK$572.42 Min: 1 / Mult: 1	-	Reed Sensor	-	-	Cable	-	-	-	-40°C	60°C	SME Series	-
MK24-B-3	2832681RL Data Sheet RoHS	STANDEXMEDER Reed Switch MK24 Series SMD SPST 3 W 30 V 0.3 A10 to 15 AT	Each (Supplied on Cut Tape) Re-Reel Packaging Options	10+ HK$37.210 25+ HK$34.460 50+ HK$32.600 100+ HK$30.740 500+ HK$27.110 More Pricing...	Total:HK$372.10 Min: 10 / Mult: 1	-	Reed Sensor	-	-	SMD	-	300mA	-	-40°C	130°C	MK24 Series	-
MK02/1-1A66-1000W	2832655 Data Sheet RoHS	STANDEXMEDER Reed Switch MK02 Series Flange Mount Top Operating SPST-NO 10 W 200 V 1 A 1 m Cable	Each	1+ HK$124.460 10+ HK$111.360 25+ HK$107.590 50+ HK$105.820	Total:HK$124.46 Min: 1 / Mult: 1	10mm	Reed Sensor	10mm	-	Cable	-	500mA	-	-30°C	80°C	MK02/1 Series	-
MK02/0-1A66-1000W	2832654 Data Sheet RoHS	STANDEXMEDER Reed Switch MK02 Series Flange Mount Front Operating SPST-NO 10 W 200 V 1 A 1 m Cable	Each	1+ HK$124.460 10+ HK$111.360 25+ HK$107.590 50+ HK$105.820	Total:HK$124.46 Min: 1 / Mult: 1	10mm	Reed Sensor	10mm	-	Cable	-	500mA	-	-30°C	80°C	MK02/0 Series	-
59141-1-S-02-A	4254221 Data Sheet RoHS	LITTELFUSE Reed Sensor SPST-NO 10.4 mm Flange -40°C to 105°C 59141 Series	Each	1+ HK$38.390 10+ HK$29.680 25+ HK$29.610 50+ HK$29.530 100+ HK$29.450 More Pricing...	Total:HK$38.39 Min: 1 / Mult: 1	16mm	Miniature Reed Sensor	16mm	-	Flange	-	-	-	-40°C	105°C	59141 Series	-
59145-1-T-02-F	4254220 Data Sheet RoHS	LITTELFUSE Reed Sensor SPST-NO 11.2 mm Flange -40°C to 105°C 59145 Series	Each	1+ HK$29.420 10+ HK$22.920 25+ HK$22.040 50+ HK$21.160 100+ HK$20.270 More Pricing...	Total:HK$29.42 Min: 1 / Mult: 1	11.2mm	Reed Sensor	11.2mm	-	Flange	-	-	-	-40°C	105°C	59145 Series	-
59170-1-U-00-D	4209288 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 5 mm SMD 500 mA -40°C to 125°C 59170 Series	Each	1+ HK$8.990 10+ HK$7.770 25+ HK$7.100 50+ HK$6.770 100+ HK$6.440 More Pricing...	Total:HK$8.99 Min: 1 / Mult: 1	5mm	Reed Sensor	5mm	-	SMD	-	500mA	-	-40°C	125°C	59170 Series	-

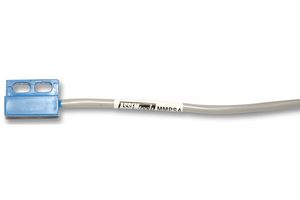

PSC175/30	607198 Data Sheet RoHS	COMUS / ASSEMTECH Reed Switch Flange Mount 8 mm SPDT 5 VA 100 Vac 0.5 A	Each	1+ HK$46.800 10+ HK$40.850 25+ HK$39.420 50+ HK$38.080 100+ HK$37.460 More Pricing...	Total:HK$46.80 Min: 1 / Mult: 1	8mm	Reed Switch	8mm	-	Flange	-	500mA	-	-20°C	85°C	PSC 175/30	-
PRC/175/30	607228 Data Sheet RoHS	COMUS / ASSEMTECH Reed Switch Cylindrical 3 mm SPDT 5 VA 100 Vac 0.25 A	Each	1+ HK$39.260 10+ HK$34.270 25+ HK$33.070 50+ HK$31.950 100+ HK$31.430 More Pricing...	Total:HK$39.26 Min: 1 / Mult: 1	3mm	Cylindrical Reed Switch	3mm	-	Cable	-	250mA	-	-20°C	85°C	-	-
MP200703	1383382 Data Sheet RoHS	ZF REED SENSOR 1 FORM C 0.2A 30V 3W	Each	1+ HK$203.040	Total:HK$203.04 Min: 1 / Mult: 1	-	-	12.7mm	-	Cable	-	-	-	-40°C	105°C	-	-
59140-1-S-02-A	5541141 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 16 mm 1NO Flange Mount 59140 Series	Each	1+ HK$29.440 10+ HK$23.740 25+ HK$23.510 50+ HK$22.230 100+ HK$20.950 More Pricing...	Total:HK$29.44 Min: 1 / Mult: 1	16mm	Miniature Reed Sensor	-	-	-	-	-	-	-	-	-	-
59025-4-S-02-A	5540690 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 11 mm 1NC Cable Mount 59025 Series	Each	1+ HK$43.290 10+ HK$33.690 25+ HK$33.430 50+ HK$31.600 100+ HK$29.760 More Pricing...	Total:HK$43.29 Min: 1 / Mult: 1	11mm	Cylindrical Reed Sensor	11.5mm	-	-	-	-	-	-40°C	105°C	-	-
59135-1-S-02-A	5541104 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 23 mm 1NO Flange Mount 59135 Series	Each	1+ HK$47.380 10+ HK$40.670 25+ HK$40.290 50+ HK$38.100 100+ HK$35.900 More Pricing...	Total:HK$47.38 Min: 1 / Mult: 1	23mm	Reed Switch	19mm	-	Flange	-	500mA	-	-40°C	150°C	59135 Series	-
59140-1-T-02-F	1839038 Data Sheet RoHS	LITTELFUSE Magnetic Sensor Flange Mount 2 Pins 30 G	Each	1+ HK$27.860 10+ HK$20.630 25+ HK$19.920 50+ HK$19.210 100+ HK$18.500 More Pricing...	Total:HK$27.86 Min: 1 / Mult: 1	-	-	5.8mm	-	Flange	2Pins	-	-	-40°C	105°C	59140 Series	Flange Mount
59070-1-S-02-A	5540859 Data Sheet RoHS	LITTELFUSE Proximity Reed Sensor 8.4 mm 1NO Cable Mount 59070 Series	Each	1+ HK$29.940 10+ HK$24.660 25+ HK$24.540 50+ HK$24.410 100+ HK$22.500	Total:HK$29.94 Min: 1 / Mult: 1	8.4mm	Reed Sensor	9mm	-	-	-	500mA	-	-40°C	105°C	-	-

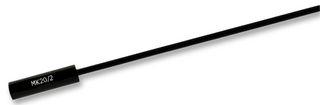

MK20/1-B-100W	1447648 Data Sheet RoHS	STANDEXMEDER Reed Switch MK20 Series Cylindrical SPST-NO 10 W 30 Vdc 0.5 A 22 to 30 AT	Each	1+ HK$43.210 10+ HK$36.040 25+ HK$32.800 50+ HK$31.290 100+ HK$29.780 More Pricing...	Total:HK$43.21 Min: 1 / Mult: 1	-	Miniature Reed Sensor	-	-	Panel Mount	-	500mA	-	-5°C	80°C	MK20 Series	-
59150-010	1385433 Data Sheet RoHS	LITTELFUSE PROXIMITY SENSOR	Each	1+ HK$29.710 10+ HK$24.870 25+ HK$23.040 50+ HK$21.790 100+ HK$20.530 More Pricing...	Total:HK$29.71 Min: 1 / Mult: 1	-	Reed Sensor	-	-	Flange	-	500mA	-	-40°C	105°C	-	-
