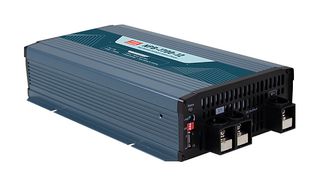

NPB-1700-12

NPB-1700-12 is a NPB-1700 series miniaturized, versatile, and ultra-wide voltage intelligent battery charger. It utilizes a fully digital control design with automatic battery voltage detection technology, with five key features including intelligent, versatile, user friendly, safe, and compact. In addition, a CANBus communication protocol is built in to meet professional applications, which allows remote controlling and monitoring for the status of the charger. It passes ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety and 3-year warranty to guarantee reliable operation. It is truly an intelligent, safe, and reliable universal charger with outstanding cost performance. Applications are AGV, E-bike, E-scooter, camping car, bus, specialty vehicles, robotic lawn mower, washing robot, telecommunication base station, equipment's or instruments with back-up battery, recreation craft, personal yacht or workboat, surveillance system, radio system backup solution.

• Auto ranging with ultra-wide charging voltage, programmable charging curve via SBP-001
• Built-in CANBus protocol for control, setting and monitoring
• Manual setting for 2/3 stage and 4 built-in charging curves via DIP S.W
• Short circuit /overvoltage/overtemperature/battery under voltage/battery reverse polarity protection
• Charger OK and battery full signal, remote ON/OFF control
• Thermal controlled DC fan for noise reduction, -30°C to +70°C wide operating temperature range
• Suitable for lead-acid (Pb) and li-ion batteries
• 3 years warranty
• 1700W rated wattage
• Output voltage is 12V
