1-216602-0
PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 10 Contacts, Through Hole Mount Right Angle

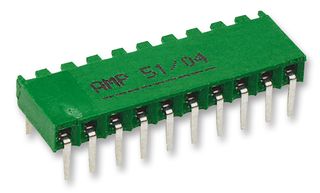

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1-216602-0
Order Code1772812
Product RangeAMPMODU HV-190
1,191 In Stock
Need more?
1191 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$27.710 |
| 10+ | HK$23.510 |
| 50+ | HK$20.310 |
| 84+ | HK$20.230 |
| 252+ | HK$19.320 |
| 504+ | HK$17.760 |
| 1008+ | HK$16.860 |
Price for:Each
Minimum: 1
Multiple: 1
HK$27.71
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No1-216602-0
Order Code1772812
Product RangeAMPMODU HV-190
Connector SystemsBoard-to-Board
Pitch Spacing2.54mm
No. of Rows1Rows
No. of Contacts10Contacts
Connector MountingThrough Hole Mount Right Angle
Product RangeAMPMODU HV-190
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product Overview
The 1-216602-0 is a right-angle 10-position 1-row Board-to-Board Receptacle with gold-plated phosphor bronze contacts and a green glass-filled polyester housing. It is suitable for use with printed circuit board.
- Stackable
- -65 to 125°C Operating temperature range
Applications
Industrial
Technical Specifications
Connector Systems
Board-to-Board
No. of Rows
1Rows
Connector Mounting
Through Hole Mount Right Angle
Contact Material
Phosphor Bronze
SVHC
No SVHC (21-Jan-2025)
Pitch Spacing
2.54mm
No. of Contacts
10Contacts
Product Range
AMPMODU HV-190
Contact Plating
Gold Plated Contacts
Technical Docs (3)
Alternatives for 1-216602-0
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Poland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Poland
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001143
