ANALOG DEVICES EVAL-ADUCM350EBZ

Evaluation Board, ADuCM350BBCZ, Configurable Impedance Network Analyser & Potentiostat

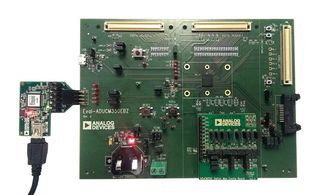

ANALOG DEVICES EVAL-ADUCM350EBZ
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
EVAL-ADUCM350EBZ
Order Code:
4032813
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
EVAL-ADUCM350EBZ   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (TUK SGACK902S Keystone Coupler)

See all from this product range

Product Overview

EVAL-ADUCM350EBZ is an evaluating kit to evaluate the ADuCM350 16bit, precision, low power Meter-on-a-Chip. The ADuCM350 is a 16MHz ARM® Cortex-M3 processor with a high precision AFE specifically designed for high precision data acquisition. The EVAL-ADuCM350EBZ kit provides scientists, system analysers and software developers a platform to migrate from sensor investigation and analysis to full ecosystem development. The evaluation kit consists of an ADuCM350 motherboard and a selection of analogue front end and digital peripheral daughter boards. The evaluation kit is designed specifically to work with the ADuCM350 software development kit (SDK) and the evaluation kit support package (EKSP).
  • Supply: 2.5 to 3.6V from an external, 5V from interface/emulator board or CR2032 battery connection
  • Interface options: UART and serial wire through 8-pin J-Link OB connector trace capability
  • Power indicator/general-purpose LEDs
  • Reset, download and external interrupt push-buttons
  • Supercapacitor and thermistor capability
  • USB connectivity
  • 8-pin connector to the interface/emulator board- access to ADuCM350 platform pins
  • 32.768KHz external crystal and 16MHz external crystal

Contents

EVAL-ADuCM350EBZ board, USB-SWD/UART-EMUZ also known as J-Link OB emulator, AFE daughter boards: ADuCM350 switch mux configuration board, ADuCM350 4-wire bio Configuration 2 board, ADuCM350 breakout board, ADuCM350 GPIO test header board, USB cable.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Analog Devices

:
32bit

:
ADuCM3xx

:
ARM

:
Cortex-M3

:
ADuCM350BBCZ

:
Eval Board ADuCM350BBCZ, Emulator, Daughter Board, Breakout Board, GPIO Test Header Board, USB Cable

:
TUK SGACK902S Keystone Coupler

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

1 In stock Need more?

1 UK stock available for 3-4 business days delivery
