MAX86180EVSYS#

MAX86180EVSYS# is a MAX86180 evaluation system. It allows for the quick evaluation of the MAX86180 optical AFE for applications at various sites on the body, particularly the wrist. The EV sys supports both I2C and SPI compatible interfaces. The EV sys has two optical readout channels that operate simultaneously. The EV sys allows flexible configurations to optimize measurement signal quality at minimal power consumption. The EV sys supports file logging and flash logging, allowing the user to disconnect from the computer for more convenient data capturing sessions, such as overnight or outdoor running. The EV sys consists of two boards. MAXSENSORBLE-EVKIT-B is the main data acquisition board while MAX86180-OSB-EVKIT-B is the sensor daughter board for the MAX86180.

• Quick evaluation of the MAX86180
• Quick evaluation of the MAX86180
• Facilitates understanding MAX86180 architecture and solution strategy
• Real-time monitoring
• Data logging capabilities
• On-board accelerometer
• Windows 10-compatible GUI software

Contents

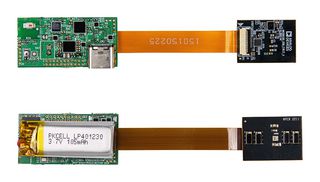

MAX86180 EV system wrist band(MAXSENSORBLE-EVKIT-B board, MAX86180-OSB-EVKIT-B board, Flex cable, 105mAh Li-Po battery LP-401230), USB-C to USB-A cable, MAXDAP-TYPE-C programmer board, Micro USB-B to USB-A cable.
