BEL POWER SOLUTIONS PET750-12-050NA

AC/DC Front End Power Supply (PSU), PFC, ITE, 1 Output, Fixed, 750 W, 12 V, 62 A

BEL POWER SOLUTIONS PET750-12-050NA
×

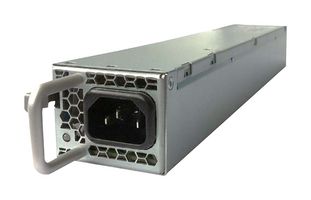

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
PET750-12-050NA
Order Code:
2908002
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
PET750 Series
Technical Datasheet:
PET750-12-050NA   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (PET750 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
ITE

:
1 Output

:
Fixed

:
750W

:
12V

:
62A

:
PET750 Series

:
90V AC to 264V AC

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

PET750-12-050NA is a 759Watts, 1U form factor power supply module with an active PFC (Power Factor Correction). It converts standard AC mains power into the main output of 12V for powering intermediate bus architectures (IBA) in high-performance and reliability servers, routers, and network switches. The PET750-12-050 meets international safety standards and displays the CE mark for the European low voltage directive (LVD). The application includes networking switches, high-performance servers, and routers. Approved by UL/CSA60950-1, IEC60950-1 and EN60950-1.GB4943.1, GB9254; GB17625.1, CNS14336-1, CNS13438.
  • Wide input voltage range from 90-264VAC
  • Best-in-class, 80 PLUS certified "platinum" efficiency
  • Hot-plug capability
  • Parallel operation with active current sharing
  • DC-DC digital controls for improved performance
  • High density design 20.5W/in3
  • One DC OK signalling status LED
  • Operating temperature is 0 to +50°C
  • Small form factor is 300 x 50.5 x 40mm
  • Over temperature, output over voltage and over current protection
