MPLEZW-A1-R100-0000B035F
LED, EASYWHITE, XLAMP, MPL SERIES

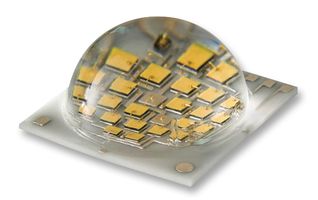

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCREE LED
Manufacturer Part NoMPLEZW-A1-R100-0000B035F
Order Code1846629
Product RangeXLamp MP-L EasyWhite
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerCREE LED
Manufacturer Part NoMPLEZW-A1-R100-0000B035F
Order Code1846629
Product RangeXLamp MP-L EasyWhite
Technical Datasheet
COB ColourNeutral White
Colour Rendering Index Max77
Power Rating11.3W
Luminous Flux @ Test800lm
Forward Current @ Test150mA
Viewing Angle125°
Forward Voltage VF Typ25V
Nominal CCT (K)3500 K
COB Length13.15mm
COB Width12.15mm
Opto Case StyleSMD-6, No Lead
Lumens / Watt @ Current Test-
Light Emitting Surface-
Lens Type-
Lens ShapeDome
Height6.1mm
Product RangeXLamp MP-L EasyWhite
SVHCTo Be Advised
Technical Specifications
COB Colour
Neutral White
Power Rating
11.3W
Forward Current @ Test
150mA
Forward Voltage VF Typ
25V
COB Length
13.15mm
Opto Case Style
SMD-6, No Lead
Light Emitting Surface
-
Lens Shape
Dome
Product Range
XLamp MP-L EasyWhite
Colour Rendering Index Max
77
Luminous Flux @ Test
800lm
Viewing Angle
125°
Nominal CCT (K)
3500 K
COB Width
12.15mm
Lumens / Watt @ Current Test
-
Lens Type
-
Height
6.1mm
SVHC
To Be Advised
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85414010
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0001
