PI3USB302-AZBEX
USB Interface, 2:1 Multiplexer/Demultiplexer SPDT USB Switch, USB 3.0, 3 V, 3.6 V, TQFN-EP

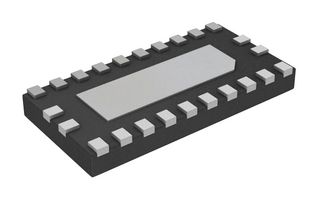

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIODES INC.
Manufacturer Part NoPI3USB302-AZBEX
Order Code3374076RL
Your Part Number
Technical Datasheet
4,458 In Stock
Need more?
4458 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 100+ | HK$9.350 |
| 250+ | HK$9.230 |
| 500+ | HK$9.110 |
| 1000+ | HK$8.990 |
| 2500+ | HK$8.880 |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 1
HK$935.00
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerDIODES INC.
Manufacturer Part NoPI3USB302-AZBEX
Order Code3374076RL
Technical Datasheet
USB StandardUSB 3.0
Supply Voltage Min3V
Supply Voltage Max3.6V
IC Case / PackageTQFN-EP
Interface Case StyleTQFN-EP
No. of Pins20Pins
Data Rate5Gbps
No. of Ports1Ports
No. of Ports1 Port
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
Qualification-
SVHCNo SVHC (27-Jun-2024)
Product Overview
PI3USB302-AZBEX is a 3.3V, USB 3.0, 1-port, 2:1 mux/demux switch. It is a 2-differential channel bi-directional multiplexer/demultiplexer switch. Due to its low bit-to-bit skew, high channel-to-channel noise isolation and bandwidth, this product is ideal for USB 3.0 signal switching at 5.0Gbps. It is ideal for routing USB 3.0 SuperSpeed signals.
- VDD operating range: 3.3V +/-10%
- ESD tolerance: 2kV HBM
- Total current from VDD 3.3V supply is 0.2mA typ at SEL=0V or VDD
- Power down current is 20uA typ at PD=1
- Bit-to-bit skew within the same differential pair is 10ps maximum
- Bandwidth (-3dB) is 8.1GHz typical
- Differential insertion loss is -1.0dB typ at f= 2.5GHz, (VIN=-10dBm, DC=0V)
- Near end crosstalk is -33dB typ at f= 2.5GHz
- 20-contact, very thin quad flat no-lead (TQFN) package
- Case temperature range for operation within spec is -40 to 85°C
Technical Specifications
USB IC Type
2:1 Multiplexer/Demultiplexer SPDT USB Switch
Supply Voltage Min
3V
IC Case / Package
TQFN-EP
No. of Pins
20Pins
No. of Ports
1Ports
Operating Temperature Min
-40°C
Product Range
-
MSL
MSL 1 - Unlimited
USB Standard
USB 3.0
Supply Voltage Max
3.6V
Interface Case Style
TQFN-EP
Data Rate
5Gbps
No. of Ports
1 Port
Operating Temperature Max
85°C
Qualification
-
SVHC
No SVHC (27-Jun-2024)
