DPMF
FLUSH MOUNT LCD DIGITAL PANEL METER, LO

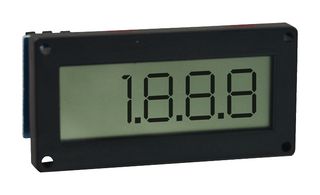

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$1,319.490 |
Price for:Each
Minimum: 1
Multiple: 1
HK$1,319.49
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Product Overview
DPMF is a flush mount LCD digital panel meter offering high performance and low cost in a compact package. This meter is designed with a 3-1/2 digit, high contrast LCD display. The unit is powered by a 4 to 20mA DC control loop input. Standard features include adjustable span and zero, and field-selectable decimal point position. The flat pack of the panel meter allows for the instrument to be mounted to any flat surface.
- 4 to 20mA DC input
- 300 ohm nominal input impedance
- Powered by control loop
- Adjustable (±1999 counts) span and zero
- 3-position, user selectable decimal point
- Automatic, “-” displayed polarity
- Operating temperature range from 32 to 122°F (0 to 50°C)
- Surface mounting, screw terminals connection
- 3 per second conversion rate
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Macau
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Macau
Country in which last significant manufacturing process was carried out
Tariff No:90251980
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.036287
