B82793S0513N201

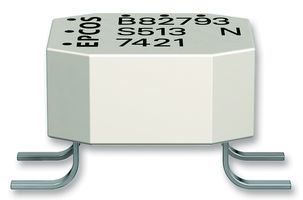

Choke, Common Mode, 51 µH, B82793S0 Series, 800 mA, 7.1mm x 6mm x 4.9mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB82793S0513N201
Order Code1644921
Product RangeB82793S0 Series
Technical Datasheet
15,414 In Stock
1,500 more incoming. You can reserve stock now
15414 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$12.830 |
| 50+ | HK$9.240 |
| 100+ | HK$8.900 |
| 250+ | HK$8.190 |
| 500+ | HK$7.860 |
| 1500+ | HK$6.680 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
HK$12.83
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB82793S0513N201
Order Code1644921
Product RangeB82793S0 Series
Technical Datasheet
DC Current Rating800mA
Inductance51µH
Product RangeB82793S0 Series
Impedance-
Inductor Case / Package-
Product Length7.1mm
Product Width6mm
Product Height4.9mm
Qualification-
SVHCNo SVHC (25-Jun-2025)
Product Overview
The B82793S0513N201 is a 0.8A data and signal line ring core Common Mode Choke suitable for reflow soldering. It has ferrite core, LCP case and bifilar winding, hot dipped Ni and Sn layer composition CuSn6 base terminals.
- High rated currents, reduced components height
- AEC-Q200 qualified
- UL94V-0 Flammability rating
Applications
Industrial, Automotive, Communications & Networking
Warnings
Ferrites are sensitive to direct impact. This can cause the core material to flake or lead to breakage of the core.
Technical Specifications
DC Current Rating
800mA
Product Range
B82793S0 Series
Inductor Case / Package
-
Product Width
6mm
Qualification
-
Inductance
51µH
Impedance
-
Product Length
7.1mm
Product Height
4.9mm
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000907
