H22A1
OPTO SWITCH, SLOTTED

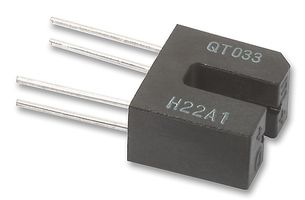

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerONSEMI
Manufacturer Part NoH22A1
Order Code1021129
Technical Datasheet
Gap Width3.15mm
Aperture Width0.889mm
Forward Current If60mA
Reverse Voltage Vr6V
Forward Voltage1.7V
Sensor Output TypePhototransistor
Sensor MountingThrough Hole
Operating Temperature Min-55°C
Operating Temperature Max100°C
Product Range-
Technical Specifications
Gap Width
3.15mm
Forward Current If
60mA
Forward Voltage
1.7V
Sensor Mounting
Through Hole
Operating Temperature Max
100°C
Aperture Width
0.889mm
Reverse Voltage Vr
6V
Sensor Output Type
Phototransistor
Operating Temperature Min
-55°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85414090
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
