SIM8051-6-0-14-01-A

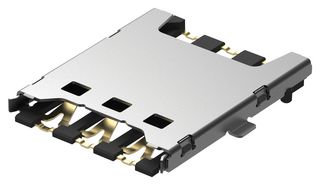

Memory Card Connector, Nano SIM, Push-Pull, 6 Contacts, Phosphor Bronze, Gold Plated Contacts
Product Information
ManufacturerGCT
Manufacturer Part NoSIM8051-6-0-14-01-A
Order Code2784977
Product RangeSIM8051
Technical Datasheet
Memory / Card TypeNano SIM
Insert & Eject MechanismPush-Pull
No. of Contacts6Contacts
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product RangeSIM8051
SVHCNo SVHC (27-Jun-2024)
Product Overview
- With Optional Locating Peg
- Voltage Rating: 30V Max
- Current Rating: 0.5A Max
- Contact Resistance: 100mΩ max.
- Insulation resistance: 100MΩ min./500VDC min.
- Dielectric withstanding voltage: 200VAC for 1 minute
- Durability: 1,500 cycles
- Operating Temperature: -40°C to +85°C
Applications
Consumer Electronics, Smartphones, Telecommunications
Technical Specifications
Memory / Card Type
Nano SIM
No. of Contacts
6Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (27-Jun-2024)
Insert & Eject Mechanism
Push-Pull
Contact Material
Phosphor Bronze
Product Range
SIM8051
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0002
