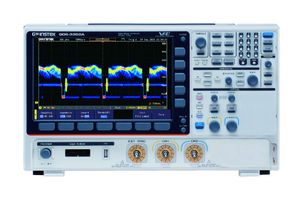

GDS-3352A

01DS332A00GT is a GDS-3000A series 350MHz, 2-channel, digital storage oscilloscope. The GDS-3000A Series features the memory length of each channel up to 200Mpts; the sampling rate of 5GSa/s one dual channels. Its display is 10.2” TFT LCD and it provides the colour display mode. The channel and 2.5GSa/s on output RGB three primary colours are each 8 bits, which allow users to clearly analyse the strength distribution of the signal. Typical applications include engineering verification and testing, SMPS measurement and product development and debugging.

• 200,000wfm/s of waveform update rate
• 490,000 segments of segmented memory and waveform search to optimize efficiency of record length
• Zoom window and play/pause rapidly navigate the waveforms
• 38 sets of automatic measurement offer various measurement selections
• High resolution acquisition mode
• I2C/UART/CAN/LIN serial bus trigger 2 and decoding functions
• Dual channel spectrum analyser (DC~2.5GHz) with spectrogram
• Dual channel 25MHz arbitrary waveform generator
• USB/LAN/RS-232 interface
• 420(W) X 253(H) X 113.8(D)mm size

Contents

Digital storage oscilloscope, GTP-351R:350MHz 10:1 passive probe, User manual CD x 1, Power cord x1.

Notes

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
