FX18-100S-0.8SH

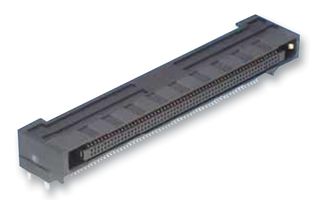

Mezzanine Connector, Receptacle, 0.8 mm, 2 Rows, 100 Contacts, Surface Mount, Phosphor Bronze

HIROSE(HRS) FX18-100S-0.8SH

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
FX18-100S-0.8SH
Order Code:
2498820
Product Range
FunctionMAX FX18 Series
Also Known As:
579-0012-9-00
Technical Datasheet:
FX18-100S-0.8SH   Datasheet
See all Technical Docs

Product Range Selector (FunctionMAX FX18 Series)

See all from this product range

Product Overview

The FX18 series from Hirose are surface mount right angled board to board receptacles with 0.8mm pitch spacing for coplanar /vertical/ stacking connection. It has multi-functional (MF) contact such as ground contact to enhance grounding, power supply contacts up to 12A to reduce required pin counts and 3 step sequential contacts for grounding and detection. These connectors has large mating guide for easy insertion and mates with signal contact of 2mm.
  • Insertion loss to cross talk ratio (ICR) meets IEEE 802.3ap specifications for 10+Gbps
  • Pin through hole mounting multifunction contacts increase strength against wrenching
  • 100 contacts
  • Operating temperature range from -55°C to 80°C
  • Phosphor bronze contacts with gold plating
  • Rated voltage of 100VAC and rated current of 0.5A (signal) and 3A (multi functional contact)
  • Flammability rating meets UL94 V-0, black colour polyamide (PA) insulator
  • Maximum contact resistance of 90mohm
  • Mating cycles is 500

Applications

Industrial

Product Information
