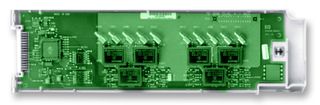

34905A

The Keysight 34905A RF multiplexers offer broadband switching capabilities for high frequency and pulsed signals. Use them to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation. The RF multiplexers are arranged as two independent 1x4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies—create a 16:1 multiplexer in a single frame.

• Dual 4-Channel RF Multiplexers
• 2 GHz bandwidth
• BNC to SMB adapter cables included
• 50Ω

Applications

Communications & Networking, Sensing & Instrumentation, Signal Processing

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
