KSSG13J12-N
Transducer, Buzzer, Magnetic, SMD, 78 dBA, 4 kHz, Surface Mount

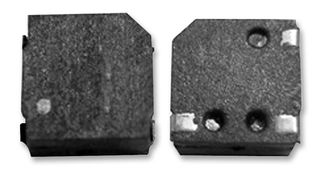

Image is for illustrative purposes only. Please refer to product description.
ManufacturerKINGSTATE
Manufacturer Part NoKSSG13J12-N
Order Code2215089
Your Part Number
Technical Datasheet
390 In Stock
12,500 more incoming. You can reserve stock now
390 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 5+ | HK$19.550 |
| 50+ | HK$17.650 |
| 250+ | HK$15.590 |
| 500+ | HK$14.100 |
| 1000+ | HK$12.440 |
| 2500+ | HK$11.580 |
| 12500+ | HK$11.010 |
Price for:Each
Minimum: 5
Multiple: 5
HK$97.75
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerKINGSTATE
Manufacturer Part NoKSSG13J12-N
Order Code2215089
Technical Datasheet
Transducer FunctionBuzzer
Supply Voltage Min2V
Tones-
Sound Pressure Level (SPL)78dBA
Resonant Frequency4kHz
Supply Voltage Max4V
Operating Current Max110mA
Transducer MountingSurface Mount
Drive Circuit-
Capacitance-
Sound Level Distance10cm
Lead Wire-
IP Rating-
Housing MaterialLCP (Liquid Crystal Polymer)
Operating Voltage Range-
Operating Temperature Min-30°C
Operating Temperature Max70°C
Product Range-
SVHCLead titanium zirconium oxide (23-Jan-2024)
Product Overview
The KSSG13J12-N is a 110mA/4V Magnetic Buzzer with LCP construction, Sn-plated SMD type terminal, 78dBA sound level and 4kHz resonant frequency. It features compact size. Suitable for Cooler, ovens, washing machines and drilling applications.
- Black colour
- -30 to 70°C Operating temperature range
Applications
Audio, Sensing & Instrumentation
Technical Specifications
Transducer Function
Buzzer
Tones
-
Resonant Frequency
4kHz
Operating Current Max
110mA
Drive Circuit
-
Sound Level Distance
10cm
IP Rating
-
Operating Voltage Range
-
Operating Temperature Max
70°C
SVHC
Lead titanium zirconium oxide (23-Jan-2024)
Supply Voltage Min
2V
Sound Pressure Level (SPL)
78dBA
Supply Voltage Max
4V
Transducer Mounting
Surface Mount
Capacitance
-
Lead Wire
-
Housing Material
LCP (Liquid Crystal Polymer)
Operating Temperature Min
-30°C
Product Range
-
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85318040
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead titanium zirconium oxide (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000816
