                      MD-ISK-I30-1000-P5-ANSI

                      Thermocouple, ANSI, K, Inconel 600, 3.94 ", 100 mm

                      LABFACILITY MD-ISK-I30-1000-P5-ANSI

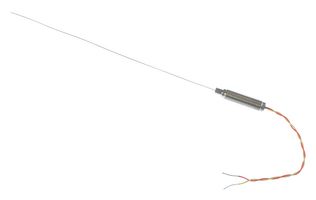

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerLABFACILITY
                      Manufacturer Part NoMD-ISK-I30-1000-P5-ANSI
                      Order Code4073464
                      Also Known AsXF-1931-FAR
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      10 In Stock

                      Need more?

                      10 Delivery in 3-4 Business Days(UK stock)
                      QuantityPrice
                      1+HK$191.630
                      5+HK$180.390
                      10+HK$169.150
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      HK$191.63
                      Add Part No. / Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerLABFACILITY
                      Manufacturer Part NoMD-ISK-I30-1000-P5-ANSI
                      Order Code4073464
                      Also Known AsXF-1931-FAR
                      Technical Datasheet

                      Data Sheet

                      Thermocouple TypeK
                      Measured Temperature Min-
                      Sensing Temperature Min-40°C
                      Measured Temperature Max-
                      Sensor Body MaterialInconel 600
                      Lead Length - Imperial3.94"
                      Lead Length - Metric100mm
                      Probe Length - Imperial3.3ft
                      Probe Length - Metric1m
                      Probe Diameter - Imperial0.12"
                      Probe Diameter - Metric3mm
                      InsulationPFA
                      Thermocouple TerminationBare Wire
                      Thermocouple Wire StandardANSI
                      Thermocouple ShieldingShielded
                      Product Range-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      MD-ISK-I30-1000-P5-ANSI is an ANSI mineral insulated thermocouple with threaded pot. Flexible mineral insulated probe with Inconel® Alloy 600 sheath with M8 x 1.0mm fine pitch threaded pot seal & tails. Inconel® Alloy 600 provides excellent oxidation resistance to 1100°C (not suitable for sulphur bearing atmospheres above 550°C). Typical applications include heat treatment processes, annealing furnaces, chemical reactors, man -made fibre and synthetic material production, steam boilers and paper industry.

                      • Mineral insulated type K thermocouple
                      • Highly flexible, sheath can be bent/formed to suit many applications and processes
                      • Insulated hot junction, probe temperature range from -40°C to +1100°C
                      • M8 x 1.0mm fine pitch threaded pot seal (200°C)
                      • Termination is 100mm PFA twin twisted 7/0.2mm tails, colour coded in accordance with ANSI MC96.1
                      • Sensor type is type K(nickel chromium/nickel aluminium) to ANSI MC96.1
                      • Single element, junction insulated from sheath (protection against spurious electrical signals)
                      • Pot seal rating is 200°C
                      • 3mm probe diameter, 1000mm probe length
                      • Yellow positive tail wire and red negative tail wire

                      Technical Specifications

                      Thermocouple Type

                      K

                      Sensing Temperature Min

                      -40°C

                      Sensor Body Material

                      Inconel 600

                      Lead Length - Metric

                      100mm

                      Probe Length - Metric

                      1m

                      Probe Diameter - Metric

                      3mm

                      Thermocouple Termination

                      Bare Wire

                      Thermocouple Shielding

                      Shielded

                      SVHC

                      No SVHC (21-Jan-2025)

                      Measured Temperature Min

                      -

                      Measured Temperature Max

                      -

                      Lead Length - Imperial

                      3.94"

                      Probe Length - Imperial

                      3.3ft

                      Probe Diameter - Imperial

                      0.12"

                      Insulation

                      PFA

                      Thermocouple Wire Standard

                      ANSI

                      Product Range

                      -

                      Technical Docs (4)

                      Selection Guide EN

                      Technical Data Sheet EN

                      Miscellaneous EN

                      Application Note EN

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Great Britain
                      Country in which last significant manufacturing process was carried out
                      Tariff No:90251900
                      US ECCN:EAR99
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:No SVHC (21-Jan-2025)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.053977
