DPM125-BL
Digital Panel Meter, 3-1/2 Digits, DC Voltage, 0mV to 200mV

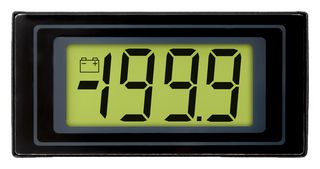

Image is for illustrative purposes only. Please refer to product description.
24 In Stock
1 more incoming. You can reserve stock now
24 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$617.710 |
| 5+ | HK$604.690 |
| 10+ | HK$586.540 |
Price for:Each
Minimum: 1
Multiple: 1
HK$617.71
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLASCAR
Manufacturer Part NoDPM125-BL
Order Code9932607
Technical Datasheet
Digit Height12.5mm
Panel Cutout Height22.2mm
Panel Cutout Width45mm
Supply Voltage Min7.5V
Supply Voltage Max14V
Operating Temperature Min0°C
Operating Temperature Max50°C
SVHCNo SVHC (07-Nov-2024)
Product Overview
The DPM125-BL is a compact panel LCD Voltmeter with LED backlighting. It features a 3-1/2-digit LCD with 12.5mm digit height, a low-profile bezel for mounting and LED backlighting. With a 200mVDC full scale reading, auto-zero and auto-polarity this meter plugs directly into a single-in-line (SIL) socket or can be panel mounted using the snap-in bezel and window supplied. It uses advanced components and construction techniques to provide an unrivalled combination of high performance.
- Logic selectable decimal points
- 3 Samples/sec rate
Applications
Industrial, Clock & Timing, Test & Measurement, Portable Devices
Technical Specifications
Digit Height
12.5mm
Panel Cutout Width
45mm
Supply Voltage Max
14V
Operating Temperature Max
50°C
Panel Cutout Height
22.2mm
Supply Voltage Min
7.5V
Operating Temperature Min
0°C
SVHC
No SVHC (07-Nov-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02511
