DPM970
Digital Panel Meter, AC Volts, 3-1/2Digits, 0V to 500V, 19mm Digit Height, 14V

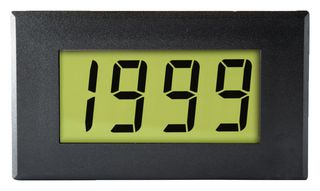

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$1,218.610 |
| 5+ | HK$1,192.940 |
| 10+ | HK$1,157.080 |
Price for:Each
Minimum: 1
Multiple: 1
HK$1,218.61
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLASCAR
Manufacturer Part NoDPM970
Order Code9932666
Technical Datasheet
No. of Digits / Alpha3.5
Meter FunctionAC Volts
Digit Height19mm
Panel Cutout Height40mm
Panel Cutout Width72mm
Supply Voltage Min7.5V
Supply Voltage Max14V
Operating Temperature Min0°C
Operating Temperature Max50°C
SVHCNo SVHC (07-Nov-2024)
Product Overview
DPM970 is a large 3½ digit LCD voltmeter with 19mm (0.75") digit height and LED backlighting, providing excellent readability in all conditions. It offers a 500V AC full-scale reading, with auto-zero, auto-polarity, and a digital hold function for stable measurement. Connection is made via screw terminals, and calibration is achieved through two multi-turn potentiometers for offset and scale adjustment. The DPM 970 is easy to install and housed in a robust carrier. A reliable, low-cost panel meter, it is a popular choice for both new and existing designs.
- Digital hold function which freezes the last displayed reading
- Screw terminal connections
- Digital hold function
- Measures voltage and current
Contents
Voltmeter, Mounting clips, Mounting bezel.
Technical Specifications
No. of Digits / Alpha
3.5
Digit Height
19mm
Panel Cutout Width
72mm
Supply Voltage Max
14V
Operating Temperature Max
50°C
Meter Function
AC Volts
Panel Cutout Height
40mm
Supply Voltage Min
7.5V
Operating Temperature Min
0°C
SVHC
No SVHC (07-Nov-2024)
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90303370
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.078
