0498030.M
Fuse, Automotive, Time Delay, 30 A, 32 V, MIDI 498 Series

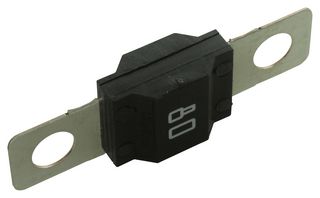

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part No0498030.M
Order Code3515858
Product RangeMIDI 498 Series
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$20.790 |
| 50+ | HK$18.900 |
| 100+ | HK$17.000 |
| 250+ | HK$15.100 |
| 500+ | HK$13.200 |
| 1000+ | HK$11.300 |
Price for:Each
Minimum: 1
Multiple: 1
HK$20.79
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No0498030.M
Order Code3515858
Product RangeMIDI 498 Series
Technical Datasheet
Blow CharacteristicTime Delay
Fuse Current30A
Voltage Rating VDC32V
Auto Blade Fuse Size-
Product RangeMIDI 498 Series
SVHCTo Be Advised
Product Overview
0498030.M is a MIDI®, Clear MIDI®, One-Hole MIDI® style, bolt-down fuse. This space-saving MIDI® fuse protects high-current wiring harnesses. The bolt-down automotive fuse employs diffusion pill technology to offer time-delay characteristics. Typical applications include cars/SUVs, trucks, off-road vehicles, buses, and watercraft as approved by Littelfuse®. It complies with standard UL 248-1 as a special purpose fuse in UL file E71611 (40-100A) and Directive 2011/65/EU.
- Color-coded ampere labels aid identification
- Clear tops make it easy to see when fuse blows
- Compact design and light weight enable greater circuit protection in less space
- Refers to ISO 8820-5:2015
- 30A current rating
- 2.5mm² test cable size
- 65V DC voltage rating, 2.06mohm typ cold resistance
- Interrupting rating: 2000A at 32V DC
- Recommended environmental temperature: -40°C to +125°C
- Terminals material: tin plated copper, black housing colour
Technical Specifications
Blow Characteristic
Time Delay
Voltage Rating VDC
32V
Product Range
MIDI 498 Series
Fuse Current
30A
Auto Blade Fuse Size
-
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85361050
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002085
