560 In Stock
100 more incoming. You can reserve stock now
560 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$73.870 |
| 10+ | HK$72.350 |
| 50+ | HK$70.950 |
| 100+ | HK$69.570 |
| 500+ | HK$57.280 |
Price for:Each
Minimum: 1
Multiple: 1
HK$73.87
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
Product Overview

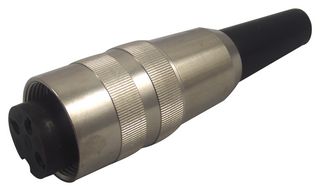

The KV30 from Lumberg is a 3 pole socket circular connector with threaded joint. This is a straight version socket with ground contact, solder terminals and has a long bend protection (TPE). The KV30 complies with IEC 61076-2-106.
- Rated current of 5A
- Rated voltage of 250VAC
- Wire cross section area of 0.75mm²
- Body material is polyamide GF
- Operating temperature range from -40°C to 85°C
- CuZn, silver and flash gold plated contact bush
- PC sleeves, CuZn, pre-nickel and tin plated grounding spring
- CuZn and nickel plated housing and knurled nut
- IP40 protection
- Mating with plugs SFV, SGR, SGV, SV, WSV
Technical Specifications
No. of Contacts
3Contacts
Connector Mounting
Cable Mount
Contact Plating
Silver Plated Contacts
Product Range
KV
Gender
Jack
Contact Termination
Solder
Connector Body Material
Metal Body
SVHC
Lead (21-Jan-2025)
Technical Docs (2)
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02374
