MHDTZK-15-BK-K
D Sub Backshell, Diecast, MHDTZK, DA, 180°, Zinc Body

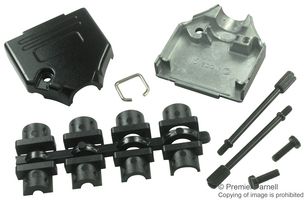

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMH CONNECTORS
Manufacturer Part NoMHDTZK-15-BK-K
Order Code463061
Product RangeMHDTZK
Also Known AsDTZK-15-BK-K, 6560-0815-02
Your Part Number
Technical Datasheet
972 In Stock
1,100 more incoming. You can reserve stock now
972 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$29.880 |
| 10+ | HK$25.360 |
| 100+ | HK$21.550 |
| 250+ | HK$20.400 |
| 500+ | HK$19.240 |
| 1000+ | HK$18.330 |
Price for:Each
Minimum: 1
Multiple: 1
HK$29.88
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMH CONNECTORS
Manufacturer Part NoMHDTZK-15-BK-K
Order Code463061
Product RangeMHDTZK
Also Known AsDTZK-15-BK-K, 6560-0815-02
Technical Datasheet
Product RangeMHDTZK
D Sub Shell SizeDA
Cable Exit Angle180°
Connector Body MaterialZinc Body
SVHCNo SVHC (27-Jun-2024)
Product Overview
The MHDTZK-15-BK-K is a 15-way full metal D-sub Hood, MHDTZK-BK series, made of zinc, excellent EMI shielding. Accepts cable up to 13mm outer diameter, top cable entry. Strain relief inserts ensure a secure termination.
- Kitted size
- Re-openable
- UNC 4-40 (Standard) Thumbscrews
- Black colour
- Standard assembly with C-clip
- -40 to +120°C Operating temperature range
Applications
Industrial
Technical Specifications
Product Range
MHDTZK
Cable Exit Angle
180°
SVHC
No SVHC (27-Jun-2024)
D Sub Shell Size
DA
Connector Body Material
Zinc Body
Technical Docs (3)
Associated Products
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.052
