MOLEX 36638-0011

Automotive Connector, 2 Port, CMC 36638 Series, Right Angle Plug, 96 Contacts, PCB Pin

MOLEX 36638-0011
×

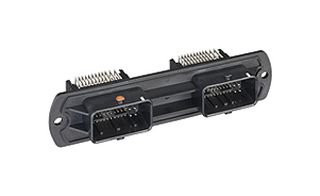

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
36638-0011
Order Code:
3365328
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
36638-0011   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (CMC 36638 Series)

See all from this product range

Product Overview

  • 36638 series, 2.50mm, 3.50mm CMC header
  • 6A current maximum per contact and 14V DC voltage maximum
  • Quad row and right angle orientation
  • 96 loaded circuits, 96 maximum circuits and fully shrouded header
  • Durability (mating cycles max) is 20
  • Features first mate/last break, guide to mating part and keying to mating part
  • Brass metal material and tin material plating termination
  • Polyester resin
  • Operating temperature range from -40° to +100°C

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
CMC 36638 Series

:
Right Angle Plug

:
PCB Pin

:
PBT (Polybutylene Terephthalate), Glass Filled Body

:
Brass

:
Tin

:
-

:
14VDC

:
6A

Find similar products Choose and modify the attributes above to find similar products.
