504052-0298

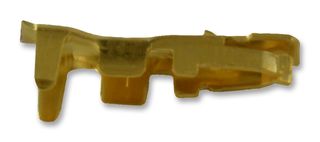

Contact, Pico-Lock 504052, Socket, Crimp, 30 AWG, Gold Plated Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No504052-0298
Order Code2614927
Product RangePico-Lock 504052
Also Known AsGTIN UPC EAN: 884982939943
Your Part Number
Technical Datasheet
2,640 In Stock
18,000 more incoming. You can reserve stock now
2640 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$1.690 |
| 450+ | HK$1.100 |
| 1350+ | HK$1.020 |
| 3600+ | HK$0.949 |
| 9000+ | HK$0.930 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
HK$1.69
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No504052-0298
Order Code2614927
Product RangePico-Lock 504052
Also Known AsGTIN UPC EAN: 884982939943
Technical Datasheet
Product RangePico-Lock 504052
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max30AWG
Contact PlatingGold Plated Contacts
For Use WithMolex Pico-Lock 504051 Series Receptacle Housing Connectors
Wire Size AWG Min32AWG
Contact MaterialCopper Alloy
SVHCNo SVHC (25-Jun-2025)
Product Overview
Pico-Lock Wire to Board Connector System offer combination of low profile, high current and durable locking for application requiring space savings and secure mating retention.
- Ultra-low profile mated height
- Bevelled header pin design
- Side positive locks
- Up to 3A current rating (1.50 pitch version)
- Wide robust fitting nails (solder tabs)
- Polarization/mating guide prevents mismating
- Top friction locks for mating retention and visual mating assurance
Applications
Automotive, Consumer Electronics, Industrial, Lighting, Communications & Networking, Communications & Networking
Technical Specifications
Product Range
Pico-Lock 504052
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
32AWG
SVHC
No SVHC (25-Jun-2025)
Contact Gender
Socket
Wire Size AWG Max
30AWG
For Use With
Molex Pico-Lock 504051 Series Receptacle Housing Connectors
Contact Material
Copper Alloy
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000056
