70107-0004
Connector Housing, SL 70107, Plug, 5 Ways, 2.54 mm, Molex SL 70021 Series Pin Contacts
2,000 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | HK$4.370 |
| 10+ | HK$4.320 |
Product Overview

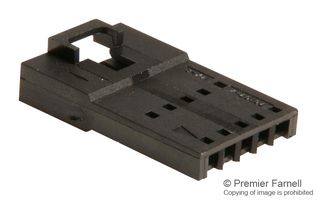

The 70107-0004 is a 5-way 1-row version-A SL™ wire-to-wire male plug crimp housing made of polyester without mounting ears. It mates with 70066 SL™ crimp housing A, G and D, 70400 SL™ insulation displacement connector assembly, version G housing, 70430 SL™ single row receptacle, version G. The crimp housing is suitable for signal and wire-to-wire applications. This 42022 series crimp housing can be used with 70021 SL™ crimp terminal.
- Black colour
- UL94V-0 flammability rating
- Lock to mating part
- Polarized to mating part
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Medical, Test & Measurement
Warnings
Version C and H will not mate to the 70107 housing series.
Technical Specifications
SL 70107
5Ways
Molex SL 70021 Series Pin Contacts
Plug
2.54mm
No SVHC (21-Jan-2025)
Alternatives for 70107-0004
1 Product Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
