2214BR-20G
PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Through Hole Mount Right Angle

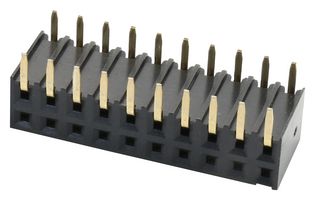

Image is for illustrative purposes only. Please refer to product description.
620 In Stock
Need more?
620 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$19.140 |
| 50+ | HK$11.180 |
| 100+ | HK$10.280 |
| 200+ | HK$8.360 |
Price for:Each
Minimum: 1
Multiple: 1
HK$19.14
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part No2214BR-20G
Order Code1593503
Technical Datasheet
Connector MountingThrough Hole Mount Right Angle
Product Overview
The 2214BR-20G is a 20-way 2-row 2.54mm PCB Right-angle Socket with gold plated phosphor bronze contacts and black high temperature plastic body insulation. This Socket is having board to board connection and through hole solder termination.
- 3A/250V Rated
- 20mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- -40 to +105°C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Connector Mounting
Through Hole Mount Right Angle
Technical Docs (1)
Alternatives for 2214BR-20G
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0022
