EE-SX672P-WR 1M
Photoelectric Sensor, Slot, PNP Open Collector, 5 mm, 50 mA, 5 V to 24 V, 1m Cable

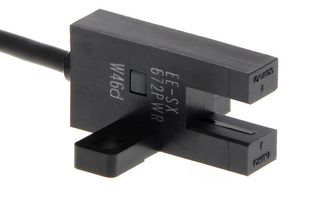

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoEE-SX672P-WR 1M
Order Code3414147
Product RangeEE Series
Your Part Number
Technical Datasheet
23 In Stock
20 more incoming. You can reserve stock now
23 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$344.020 |
| 5+ | HK$324.960 |
| 10+ | HK$305.890 |
| 50+ | HK$305.850 |
| 100+ | HK$305.800 |
Price for:Each
Minimum: 1
Multiple: 1
HK$344.02
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerOMRON INDUSTRIAL AUTOMATION
Manufacturer Part NoEE-SX672P-WR 1M
Order Code3414147
Product RangeEE Series
Technical Datasheet
Sensing MethodThrough Beam
Sensing Range Max5mm
Sensing Distance / Slot Width5mm
Supply Voltage DC Min5V
Supply Voltage Min5VDC
Supply Voltage Max24VDC
Supply Voltage DC Max24V
Sensor Case / PackageModule
Output Current50mA
Collector Emitter Voltage Max-
Collector Current IC Max50mA
Sensor Output TypePNP Open Collector
IP RatingIP50
Sensor MountingCable, Panel
Operating Temperature Min-25°C
Operating Temperature Max55°C
Product RangeEE Series
Qualification-
Product Overview
EE-SX672P-WR 1M is an EE-SX67 series, non-modulated slot-type photo microsensor. It enables switching between dark-ON and light-ON operation.
- Global standard slot-type photo microsensor with 50 to 100mA direct switching capacity
- Response frequency as high as 1KHz
- Easy operation monitoring with bright light indicator
- Wide operating voltage range from 5 to 24VDC, polybutylene phthalate (PBT) case material
- Flexible robot cable is provided as a standard feature
- T-shaped, slot centre 7mm appearance, IEC60529 IP50 degree of protection
- Through-beam type (with slot) sensing method, PNP output
- 5mm (slot width) sensing distance, pre-wired 1m connection
- Dark-ON/Light-ON output configuration, incident light indicator mode
- Ambient temperature range from -25 to +55°C
Technical Specifications
Sensing Method
Through Beam
Sensing Distance / Slot Width
5mm
Supply Voltage Min
5VDC
Supply Voltage DC Max
24V
Output Current
50mA
Collector Current IC Max
50mA
IP Rating
IP50
Operating Temperature Min
-25°C
Product Range
EE Series
Sensing Range Max
5mm
Supply Voltage DC Min
5V
Supply Voltage Max
24VDC
Sensor Case / Package
Module
Collector Emitter Voltage Max
-
Sensor Output Type
PNP Open Collector
Sensor Mounting
Cable, Panel
Operating Temperature Max
55°C
Qualification
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90314990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01918
