ASE02008MR-LW150-R

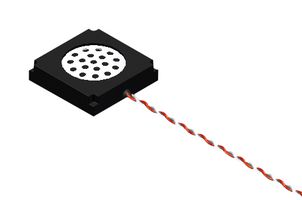

Speaker, 800 Hz to 20 kHz, 8 ohm, 700 mW, 79 dBA, Square, SMD
Image is for illustrative purposes only. Please refer to product description.
80 In Stock
Need more?
80 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$28.040 |
| 5+ | HK$25.450 |
| 10+ | HK$22.860 |
| 20+ | HK$21.550 |
| 40+ | HK$20.230 |
| 80+ | HK$18.990 |
Price for:Each
Minimum: 1
Multiple: 1
HK$28.04
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPUI AUDIO
Manufacturer Part NoASE02008MR-LW150-R
Order Code4411401
Technical Datasheet
Driver TypeGeneral Purpose
Impedance8ohm
External Width - Metric20mm
Power Rating Nom500mW
Resonant Frequency1.4kHz
Sound Pressure Level (SPL)79dBA
Speaker ShapeSquare
Product Dimensions20mm x 20mm x 5mm
External Width - Imperial0.78"
Frequency Response Min800Hz
Frequency Range800Hz to 20kHz
Frequency Response Max20kHz
Temperature GradeStandard
IP Rating-
Product Range-
Speaker MountingSMD
Power Rating Max700mW
External Length - Metric20mm
External Depth - Metric5mm
External Length - Imperial0.78"
External Depth - Imperial0.19"
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Driver Type
General Purpose
External Width - Metric
20mm
Resonant Frequency
1.4kHz
Speaker Shape
Square
External Width - Imperial
0.78"
Frequency Range
800Hz to 20kHz
Temperature Grade
Standard
Product Range
-
Power Rating Max
700mW
External Depth - Metric
5mm
External Depth - Imperial
0.19"
Impedance
8ohm
Power Rating Nom
500mW
Sound Pressure Level (SPL)
79dBA
Product Dimensions
20mm x 20mm x 5mm
Frequency Response Min
800Hz
Frequency Response Max
20kHz
IP Rating
-
Speaker Mounting
SMD
External Length - Metric
20mm
External Length - Imperial
0.78"
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85182100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.026
