D-181-1224-90/9

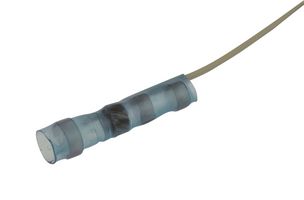

Solder Sleeve, with Lead, Terminator, 3.7 mm, Blue (Transparent), PVDF (Polyvinylidene Fluoride)
Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoD-181-1224-90/9
Order Code2798116
Also Known As955477-000
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$68.310 |
| 10+ | HK$54.210 |
Price for:Each
Minimum: 1
Multiple: 1
HK$68.31
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part NoD-181-1224-90/9
Order Code2798116
Also Known As955477-000
Product Overview
The D-181-1224-90/9 is a 3.7mm SolderSleeve Coax Terminator with heat shrink radiation-cross-linked polyvinylidene fluoride insulation sleeve, fluorocarbon-based thermoplastic meltable rings, pre-installed lead and Sn63 solder termination. This D-181 series terminator for use in terminating the silver/tin conductor and shield plating of a coaxial cable and temperature of cable rated for at least 125°C.
- White/white with black stripe lead color
- Stranded lead
- 24AWG Pre-installed lead wire size
- Immersion protection resistance
- 150°C Operating temperature
Applications
Industrial
Technical Docs (2)
Legislation and Environmental
Tariff No:85469010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
