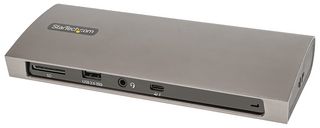

TB4CDOCKUE

The TB4CDOCKUE from Startech is a Thunderbolt 4 certified docking station; connect to an available Thunderbolt 3/4 or USB4 port to add comprehensive connectivity options including dual display output to your high performance Laptop or MacBook. Connect up to two displays (via USB-C video adaptors) or daisy chain up to 5 devices with the Thunderbolt 4 ports. The dock provides 3x Thunderbolt 4 ports for display/device connection, Gigabit LAN, USB hub, SD card slot and 3.5mm audio port.

• Provides 3x Thunderbolt 4 ports, LAN, USB hub, SD card slot and 3.5mm audio port
• Downstream Thunderbolt 4 (40Gb/s) ports for peripheral and display connection with 15W (3A) charging per port
• Connect up to two displays with USB-C monitors or USB-C video adaptors
• Single display up to 8K 30Hz, dual display up to 4K 60Hz with Thunderbolt 4 or compatible USB4 hosts
• Thunderbolt 4 M1 Max/M1 Pro MacBooks support single displays up to 6K 60Hz, dual display up to 4K 60Hz
• Hub includes 3x USB 3.2 Gen 2 (10Gb/s) ports and 1x USB 2.0 port with BC1.2 Fast Charging (7.5W, 1.5A)
• Thunderbolt 3 Intel Macs support single 6K 60Hz or dual 4K 60Hz, Thunderbolt 3 M1 Macs support single display up to 6K 60Hz
• Daisy chain up to 5 devices from the Thunderbolt 4 ports
• 96W Certified power delivery for charging laptop and connected devices
• High Speed SD 4.0 UHS-II card reader
• Gigabit RJ45 port for wired LAN connectivity with PXE boot and WoL support
• 3.5mm 4-position TRRS audio port for mic/speakers
• Thunderbolt 4 interface (40Gb/s) with 0.8m Thunderbolt 4 host cable included
• Supports Windows 10/11 and macOS 11/12
• Kensington-style mini/standard security slots for secure deployment
• Dimensions (HxWxD): 29x194x84mm
• 3 Year manufacturer warranty

Contents

Docking station, Thunderbolt 4 cable, AC adaptor (UK/EU) and user guide
