65.9193-21

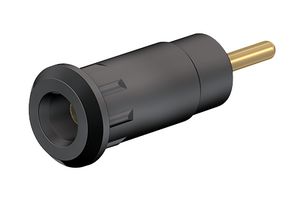

Banana Test Connector, 2mm, Receptacle, Panel Mount, 10 A, 600 V, Gold Plated Contacts, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTAUBLI
Manufacturer Part No65.9193-21
Order Code1085552
Product RangeSEB2-R Series
Technical Datasheet
18 In Stock
Need more?
18 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$25.310 |
| 20+ | HK$24.770 |
| 50+ | HK$24.060 |
| 100+ | HK$23.320 |
Price for:Each
Minimum: 1
Multiple: 1
HK$25.31
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTAUBLI
Manufacturer Part No65.9193-21
Order Code1085552
Product RangeSEB2-R Series
Technical Datasheet
Connector MountingPanel Mount
Current Rating10A
Voltage Rating600V
Contact PlatingGold Plated Contacts
Connector ColourBlack
Contact MaterialBrass
Contact Termination TypeQuick Connect
Product RangeSEB2-R Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The SEB2-R series insulated Ø2mm Rigid Socket accepting spring-loaded Ø2mm plugs with rigid insulating sleeve. It is made of brass. The socket is pressed into predrilled panels of plastic and metal. It has 2.8 x 0.8mm flat connecting tab and Ø1.9mm round connecting pin connections.
Applications
Industrial
Technical Specifications
Gender
Receptacle
Current Rating
10A
Contact Plating
Gold Plated Contacts
Contact Material
Brass
Product Range
SEB2-R Series
Connector Mounting
Panel Mount
Voltage Rating
600V
Connector Colour
Black
Contact Termination Type
Quick Connect
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005443
