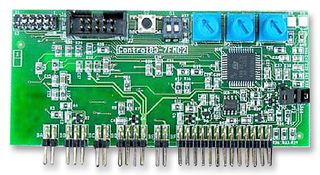

                      STEVAL-IHM001V1

                      Reference Design Kit, BLDC & AC Motor Controller

                      STMICROELECTRONICS STEVAL-IHM001V1
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerSTMICROELECTRONICS
                      Manufacturer Part NoSTEVAL-IHM001V1
                      Order Code1292073
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Manufactured

                      Product Information

                      ManufacturerSTMICROELECTRONICS
                      Manufacturer Part NoSTEVAL-IHM001V1
                      Order Code1292073
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerSTMicroelectronics
                      Silicon Core NumberST7FMC
                      Kit Application TypePower Management
                      Application Sub TypeThree Phase AC / DC Brushless Motor Control
                      Core ArchitectureST7
                      Core Sub-ArchitectureST7
                      Silicon Family NameST7MC2xx
                      Kit ContentsBLDC / AC Motor Control Board
                      Product Range-
                      SVHCNo SVHC (17-Dec-2015)

                      Product Overview

                      STEVAL-IHM001V1 is a BLDC and AC motor control board. The general hardware architecture of the reference design kit is based on an inverter topology suitable to efficiently drive three types of motors such as three phase BLDC/AC permanent magnet in six step mode, three phase AC induction and three phase BLAC PM motor (sinusoidal driven) plus a plug-in control board, based on ST7FMC MCU. The ST7FMC microcontroller is designed specifically for motor control applications and offers significant advantages compared to other microprocessor based approaches such as DSPs. The control board is compatible with all the three power boards of the reference design kit system.

                      • Quick to set up, to install and easy to run
                      • Easy to configure through the dedicated GUI
                      • Firmware libraries available for easy customization
                      • Design is reusable
                      • Optimised layout to provide very low level of interference between the power and the signal noise
                      • Modular approach with three different power board module(300W, 1kW, 3kW)

                      Applications

                      Motor Drive & Control

                      Technical Specifications

                      Silicon Manufacturer

                      STMicroelectronics

                      Kit Application Type

                      Power Management

                      Core Architecture

                      ST7

                      Silicon Family Name

                      ST7MC2xx

                      Product Range

                      -

                      Silicon Core Number

                      ST7FMC

                      Application Sub Type

                      Three Phase AC / DC Brushless Motor Control

                      Core Sub-Architecture

                      ST7

                      Kit Contents

                      BLDC / AC Motor Control Board

                      SVHC

                      No SVHC (17-Dec-2015)

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Associated Products

                      2 Products Found

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Italy
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85423190
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (17-Dec-2015)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.4
