2342935-3
Cage, QSFP-DD, 1 x 2 (Ganged), Heat Sink, Without Light Pipe, Through Hole, Press-Fit
Need more?
| Quantity | Price |
|---|---|
| 1+ | HK$150.480 |
| 10+ | HK$147.320 |
| 25+ | HK$143.400 |
| 140+ | HK$123.030 |
| 280+ | HK$122.250 |
| 560+ | HK$112.560 |
Product Information
Product Overview

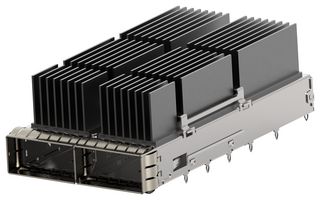

2342935-3 is a QSFP-DD (quad small form-factor pluggable double density) extruded cage assembly. QSFP-DD doubles the density of QSFP interconnects with an eight-lane electrical interface capable of 28Gbps NRZ or 56Gbps PAM-4 to achieve 200 or 400Gbps aggregate per port. The QSFP-DD portfolio’s backwards compatibility allows existing QSFP modules to be plugged into QSFP-DD ports. Our QSFP-DD cages feature a proprietary heat sink design, making them the only solution to work in 15-18W applications at a low cost – providing superior thermal and signal integrity performance. Typical applications include servers, switches, routers, data centres and high performance computing.
- 1x2 port
- Extruded cage assembly
Technical Specifications
Cage Assembly
AMP QSFP-DD I/O Connectors
With Heat Sink
Through Hole, Press-Fit
QSFP-DD Cage
1 x 2 (Ganged)
Without Light Pipe
-
Technical Docs (2)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
