TLP700(F)
Optocoupler, Gate Drive Output, 1 Channel, DIP, 6 Pins, 5 kV

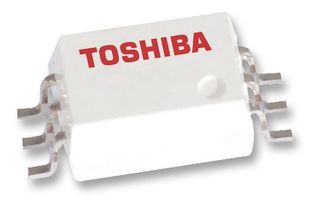

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerTOSHIBA
Manufacturer Part NoTLP700(F)
Order Code1761567
Technical Datasheet
No. of Pins6Pins
Isolation Voltage5kV
Product Overview
The TLP700(F) is a 1-channel 6-pin Photocoupler consists of a GaAIAs light-emitting diode and an integrated photodetector. The TLP700 is 50% smaller than the 8-pin DIP and meets the reinforced insulation class requirements of international safety standards. Therefore the mounting area can be reduced in equipment requiring safety standard certification. It is suitable for gate driving circuits for IGBTs or power MOSFETs. In particular, the TLP700 is capable of direct gate driving of low-power IGBTs.
- ±2A Maximum peak output current
- 2mA Maximum supply current
- 5mA Maximum threshold input current
- 500ns Maximum switching time (tpLH/tpHL)
- ±10kV/μs Minimum common-mode transient immunity
Applications
HVAC, Power Management
