TMC4671-LEV-REF

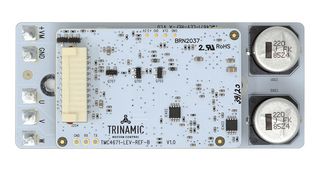

Reference Design Board, TMC4671, Light Electric Vehicles

New

TRINAMIC TMC4671-LEV-REF
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
TRINAMIC TRINAMIC
Manufacturer Part No:
TMC4671-LEV-REF
Order Code:
3765363
Technical Datasheet:
TMC4671-LEV-REF   Datasheet
See all Technical Docs

Product Overview

TMC4671-LEV-REF is an open source reference design for LEVs (Light Electric Vehicles). It is a BLDC servo driver for voltages up to +55V (ca. 13S) and up to 500W motor power. It offers a wide range of connectivity to external sensors, position feedback systems, and GPIO as well as supports external lights on the LEV. A CAN and a TTL UART interface are available for communication.
  • Single axis BLDC servo driver
  • Motor phase currents up to 35A RMS
  • Supply voltage up to 13S (up to +55V)
  • HALL sensor interface with +5V/100mA sensor supply
  • CAN & UART communication interface
  • 3x GPIO and/ or LED control
  • Sin/Cos and torque sensor interface
  • External light support for LEV
  • On-board MEMS motion sensor
  • Open source hardware and firmware

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
