TMC6140-EVAL-KIT

Evaluation Board, TMC6140-LA, BLDC, PMSM and Servo, Motor Driver

New

TRINAMIC TMC6140-EVAL-KIT
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
TRINAMIC TRINAMIC
Manufacturer Part No:
TMC6140-EVAL-KIT
Order Code:
3775865
Technical Datasheet:
TMC6140-EVAL-KIT   Datasheet
See all Technical Docs

Product Overview

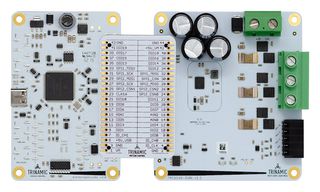

TMC6140-EVAL-KIT is a set of one MCU board Landungsbrücke, one Eselsbrücke bridge board and one TMC6140-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning.
  • 3-phase motors up to 32A RMS coil current
  • Voltage range from 6VDC to 30VDC
  • Gate drive 0.5A or 1.0A
  • 3.3V switching regulator (0.5A) with internal schottky diode (up to 100mA)
  • Charge pump pin to utilize buck converter for step-up converter
  • 3 bottom shunt amplifiers
  • Analog programmable short detect
  • Two low power modes with 0.25mA standby current consumption
  • Diagnostics output via UART-TxD

Contents

One MCU board Landungsbrücke, One Eselsbrücke bridge board, One TMC6140-EVAL driver board.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
BLDC, PMSM and Servo

:
Trinamic

:
Motor Driver

:
TMC6140-LA

:
1 x Landungsbrucke MCU Board, 1 x Eselsbrucke Bridge Board, 1 x TMC6140-EVAL Driver Board

:
-
