TB3-CP80
Test Box, Sensor, 18 VDC
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | HK$1,774.940 |
| 5+ | HK$1,460.800 |
| 10+ | HK$1,431.590 |
| 25+ | HK$1,402.370 |
| 50+ | HK$1,373.160 |
| 100+ | HK$1,343.940 |
Price for:Each
Minimum: 1
Multiple: 1
HK$1,774.94
Add Part No. / Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTURCK
Manufacturer Part NoTB3-CP80
Order Code4284570
Technical Datasheet
SVHCNo SVHC (20-Jun-2016)
Product Overview

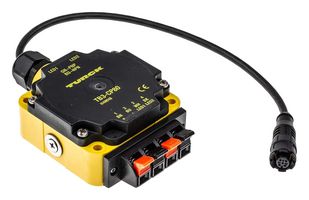

TB3-CP80 is a sensor test box. It is designed to test the functionality of inductive, magnetic field, capacitive and photoelectric sensors directly on-site or in the workshop. LEDs indicate the switching status of the test box. Clearly visible and highly illuminated display of switching status. In addition, the test box indicates the switching status with an acoustic signal (if connected to pin 4).
- Universal test device for different sensor types
- 2-wire DC sensors
- 3-wire and 4-wire DC sensors (npn/pnp)
- NAMUR sensors according to DIN EN 60947-5-6
- Function test without dismounting the sensor
- User-friendly operator and display elements
- Powered via 2 batteries, type E-Block 9V
- 18VDC operating voltage, 2 × LEDs, green/blue (switching state)
- Dimension is 80 x 80 x 40.5mm
- Spring type terminals, cable with quick-connect coupling electrical connection
Technical Specifications
SVHC
No SVHC (20-Jun-2016)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (20-Jun-2016)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.355616
