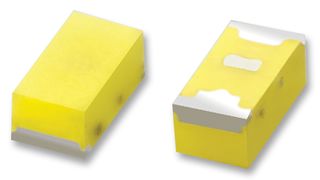

VLMW11R2S2-5K8L-08
LED, White, SMD, 0.8mm x 1.6mm, 20 mA, 4 V, 280 mcd
Product Information
Alternatives for VLMW11R2S2-5K8L-08
2 Products Found
Product Overview
The VLMW11R2S2-5K8L-08 is an ultra-bright SMD LED for use with backlighting in office equipment, indoor and outdoor message boards. The new 0603 LED series has been designed in the smallest SMD package. This innovative 0603 LED technology opens the way to smaller products of higher performance, more design in flexibility and enhanced applications. The 0603 LED is an obvious solution for small-scale, high power products that are expected to work reliability in an arduous environment. The reflector inside this package is filled with a mixture of epoxy and yellow converter.
- High efficient InGaN technology
- Compatible to IR reflow soldering
- Preconditioning according to JEDEC® level 2
- Up to 1kV ESD-withstand voltage
- 5500K Colour temperature
- 5V Reverse voltage
- 80mW Power dissipation
- Halogen-free, green product
Applications
Automotive, Communications & Networking, Audio, Imaging, Video & Vision, Signalling, Commercial, Industrial
Technical Specifications
White
0.8mm x 1.6mm
4V
80°
TUK SGACK902S Keystone Coupler
MSL 2 - 1 year
SMD
20mA
280mcd
Rectangular
AEC-Q100
No SVHC (16-Jan-2020)
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Malaysia
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
