1896110000

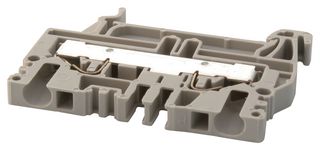

DIN Rail Mount Terminal Block, 2 Ways, 26 AWG, 10 AWG, 4 mm², Push In, 30 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWEIDMULLER
Manufacturer Part No1896110000
Order Code1809133
Product RangePush in Terminals P Series
Also Known AsPDU 2.5/4
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerWEIDMULLER
Manufacturer Part No1896110000
Order Code1809133
Product RangePush in Terminals P Series
Also Known AsPDU 2.5/4
Technical Datasheet
No. of Positions2Ways
Wire Size AWG Min26AWG
Wire Size AWG Max10AWG
Conductor Area CSA4mm²
Rated Current30A
Rated Voltage600V
No. of Levels1
Product RangePush in Terminals P Series
Product Overview
The 1896110000 is an one circuit feed-through Terminal Block with push-in connection for plug-in cross-connector and 4mm² wire cross section area. Dark beige colour, TS 35 rail mount, snap-on mounting and 12mm stripping length. The P series PDU 2.5/4 600V terminal block accepts 26AWG minimum to 10AWG maximum wire size.
- Wemid insulator
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
No. of Positions
2Ways
Wire Size AWG Max
10AWG
Rated Current
30A
No. of Levels
1
Wire Size AWG Min
26AWG
Conductor Area CSA
4mm²
Rated Voltage
600V
Product Range
Push in Terminals P Series
Technical Docs (2)
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.007
