WXR 3030
Rework Station, Multi-channel, 550 °C, 230 V, Euro, UK
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWELLER
Manufacturer Part NoWXR 3030
Order Code2629095
Also Known AsT0053501699N, GTIN UPC EAN: 4003019435807
Your Part Number
Technical Datasheet
5 In Stock
Need more?
5 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | HK$34,863.730 |
Price for:Each
Minimum: 1
Multiple: 1
HK$34,863.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWELLER
Manufacturer Part NoWXR 3030
Order Code2629095
Also Known AsT0053501699N, GTIN UPC EAN: 4003019435807
Technical Datasheet
Supply Voltage VAC230V
Heat Temperature Max550°C
Output Power600W

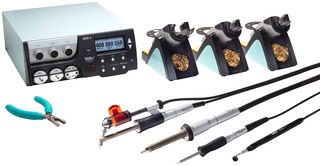

Kit ContentsWXR3 Rework Station, WXHAP200 Hot Air Pencil, WXP65 Solder Iron, WXDP120 Desolder Iron, Safety Rest
Product Range-
Plug TypeEU, UK
SVHCNo SVHC (15-Jan-2019)
Product Overview
The WXR 3030 from Weller is a 3 channel rework station with European and UK plug.
- ESD safe
- Mains supply voltage of 230V at 50Hz or 120V at 60Hz or 100V at 50Hz/60Hz
- Power consumption of 420W (600W)
- Standard dimension of 273mm x 235mm x 102mm (L x W x H)
- 6.7Kg of weight
- 240 x 88 dots/backlighting
- Temperature accuracy of ± 9°C (± 17°F) depends on tool (WXHAP ± 30°C /±80°F)
- Temperature stability of ± 2°C (± 4°F)
Applications
Industrial
Contents
WXR3 rework station, WXHAP200 hot air pencil, WXP65 solder iron, WXDP120 desolder iron, Safety rest.
Technical Specifications
Supply Voltage VAC
230V
Output Power
600W
Product Range
-
SVHC
No SVHC (15-Jan-2019)
Heat Temperature Max
550°C
Kit Contents
WXR3 Rework Station, WXHAP200 Hot Air Pencil, WXP65 Solder Iron, WXDP120 Desolder Iron, Safety Rest
Plug Type
EU, UK
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85151990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2019)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):12.9
