No Longer Stocked
Product Information
ManufacturerKUEBLER
Manufacturer Part No8.3720.1611.1024
Order Code4730859
Product Range3720
Technical Datasheet
Encoder TechnologyOptical
Encoder TypeIncremental
No. of Detents-
OrientationVertical
Encoder OutputRS422
Encoder MountingBracket Mount
Product Range3720
Rotational Life Cycles-
No. of Channels-
Shaft TypeHollow Shaft
Shaft Length-
IP RatingIP65, IP67
TerminationWire Leaded
Product Overview

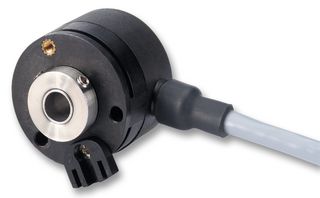

The 8.3720.1611.1024 is an incremental Hollow Shaft Encoder mounted directly on the drive shaft without couplings. This saves up to 30% cost and 60% clearance compared to shaft versions. Bracket and cover made from a new high-tech-material (composite material). Tube tech cable outlet guarantees 10x higher strain relief than traditional cabling methods plus higher IP-Protection.
- Temperature and ageing compensation
- Short circuit proof outputs
- IP67 Protection rating
- High component integration leads to low profile design
- High performance
Applications
Industrial
Technical Specifications
Encoder Technology
Optical
No. of Detents
-
Encoder Output
RS422
Product Range
3720
No. of Channels
-
Shaft Length
-
Termination
Wire Leaded
Encoder Type
Incremental
Orientation
Vertical
Encoder Mounting
Bracket Mount
Rotational Life Cycles
-
Shaft Type
Hollow Shaft
IP Rating
IP65, IP67
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:90328900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.1
